Which pedal matches your needs and performance?

Maximum force: 140 kg
Hydraulic damper: yes
Sensor type: Load cell – measures force
Force curve: Curved – Increasing rise
Travel: Adjustable up to 100mm

Maximum force: 65 kg
Hydraulic damper: no
Sensor type: Load cell – measures force
Force curve: Curved – Increasing rise
Travel: Adjustable between 15 – 85mm

Maximum force: 70 kg
Hydraulic damper: ?
Sensor type: Load cell – measures force
Force curve: Curved – Increasing rise
Travel: ?

Pedal force range at maximum travel: Adjustable between 2,25 – 9,25kg
Hydraulic damper: Yes
Sensor type: Load cell – measures travel
Force curve: Lineair
Travel: Adjustable up to 100mm
Adjustable preload: Yes

Pedal force range at maximum travel: Adjustable between 4,3 – 14,5kg
Hydraulic damper: No
Sensor type: Load cell – measures travel
Force curve: Lineair
Travel: Adjustable between 4,3 – 15 kg
Adjustable preload: Yes

Pedal force range at maximum travel: ?
Hydraulic damper: ?
Sensor type: ?
Force curve: ?
Travel: ?
Adjustable preload: ?

Pedal force range at maximum travel: Adjustable up to 47,5kg
Hydraulic damper: Yes
Sensor type: Load cell – measures travel
Force curve characteristic: Adjustable concave curve
Travel: Adjustable up to 100mm
Adjustable preload: Yes

Pedal force range at maximum travel: Adjustable between 5-12 kg
Hydraulic damper: No
Sensor type: Load cell – measures travel
Force curve characteristic: Adjustable concave curve, (3 settings). End of travel force is appr. 67% of peak force.
Travel: 98mm not adjustable
Adjustable preload: Yes

Pedal force range at maximum travel: ?
Hydraulic damper: ?
Sensor type: ?
Force curve characteristic: ?
Travel: ?
Adjustable preload: ?

Calibration tool: Heusinkveld SmartControl
Custom pedal output curves: Yes
Save and load profiles: Yes
Easy calibration wizard: Yes
Change pedal settings without recalibrating: Yes

Calibration tool: Heusinkveld SmartControl
Custom pedal output curves: Yes
Save and load profiles: Yes
Easy calibration wizard: Yes
Change pedal settings without recalibrating: Yes

Calibration tool: Heusinkveld SmartControl
Custom pedal output curves: ?
Save and load profiles: ?
Easy calibration wizard: Yes
Change pedal settings without recalibrating: ?

Material finish: Glas bead blasted stainless steel
USB Controller included: Yes – external controller box
Compatible with optional baseplate: Yes (Ultimate+ baseplate)
Type of simracer: Professional driver, simracing professional, seeking competitive edge

Material finish: Powder coated and glass bead blasted stainless steel
USB Controller included: Yes – integrated in the brake pedal
Compatible with optional baseplate: Yes (Sprint baseplate)
Type of simracer: Enthusiastic simracers, seeking improvement and consistency

Material finish: Laser cut steel
USB Controller included: Yes – external controller box
Compatible with optional baseplate: Yes (Ultimate+ baseplate or very rigid base)
Type of simracer: Commercial environments, racecenters, arcades

Real race car drivers or race teams, Esports professionals and experienced simracers

We recommend going for a set of  Ultimate+, especially if you run quicker Formula cars (FRenault 2.0 and higher) or quick GT cars you will be used to applying very high brake pedal loads. Ultimate+ pedals can handle these (up to 140kg), the maximum brake force of the Sprint pedals (65kg) is slightly below the typical requirements of quick GT cars

Casual simracers

We recommend going for the Sprint pedals. The maximum operating forces are above most other commercially available sets, giving you a large range of options to set up these pedals to your needs. The  Sprint pedals also come with easy to understand software to calibrate and fine-tune the pedal output.

Other commercial applications (eg. sim centres, expo simulators etc.)

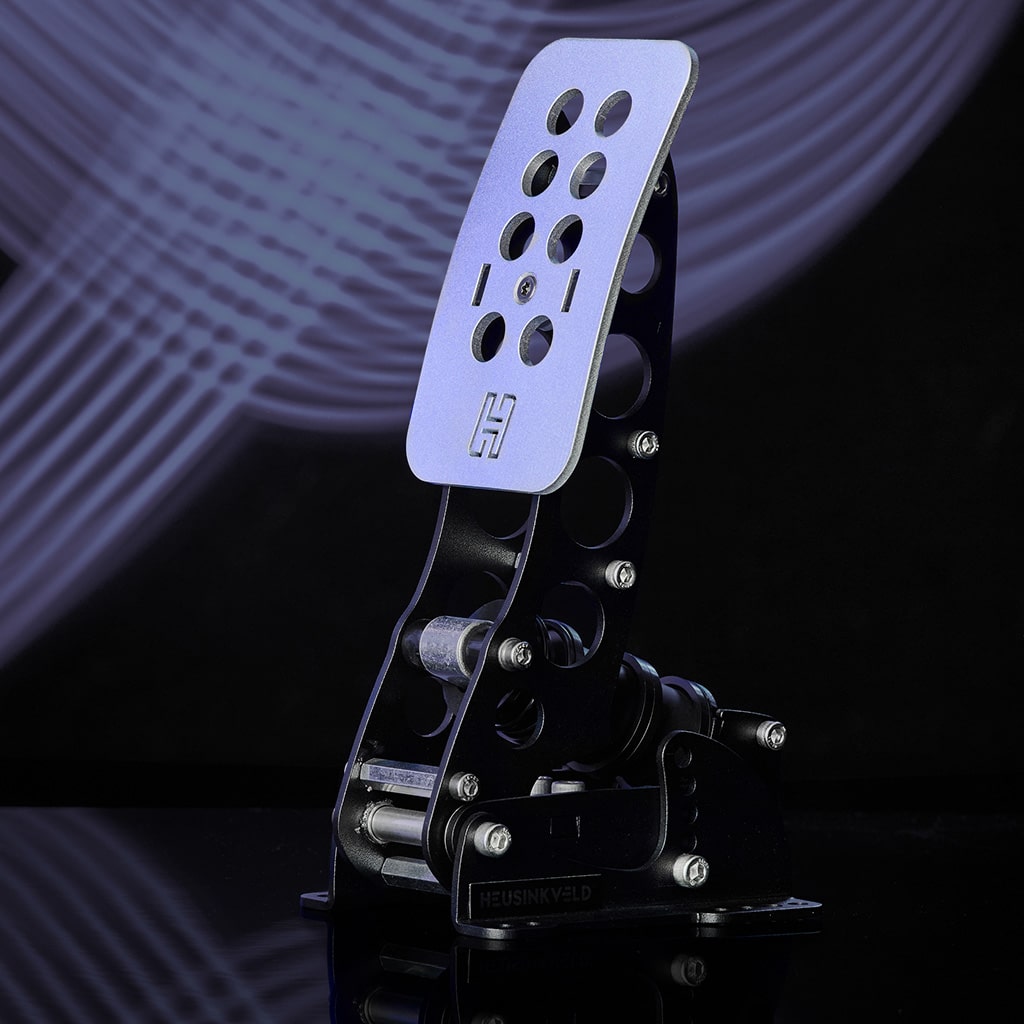

RaceCenter pedals are engineered for commercial use, made to perform in the most demanding areas. The design is focused on durability and easy maintenance. With the main pedal parts constructed out of laser cut steel, oversized load cell sensors and overload protection on every pedal, RaceCenter pedals are suited for high-frequency commercial use.
