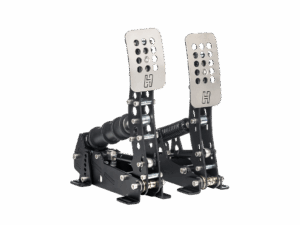

Ultimate+ 2-pedal set Black

€974,00€1.178,54 Excl. VATIncl. VAT

21% VAT

Improve your laptimes in terms of consistency & accuracy. Whether you are training for professional racing or aiming to boost your performance. Choose from a total of 9 possible brake resistance settings and discover an ultra-realistic experience. Capable of simulating pedal loads as high as in real F1 and GT cars.

Read product details
sports_motorsports
Used by real drivers
local_shipping
Worldwide shipping 1-5 days
engineering
Engineered for accuracy & reliability
autoplay
Plug – and – play
Black
Pedals:

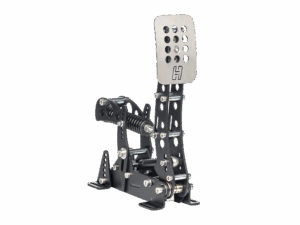

Clutch only

2 Pedals (no clutch)

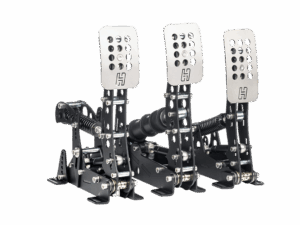

3 Pedals

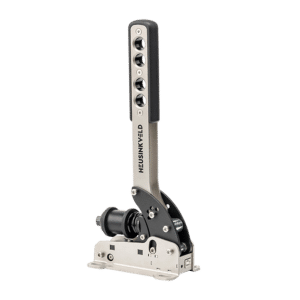

Handbrake

When rallying or drifting, you want full control. The Handbrake is designed to offer a firm feel with adjustable resistance, simulating the behavior of a real handbrake. The solid construction ensures it stays stable and reliable during simracing. Enjoy rallying or drifting with a next level of precision.

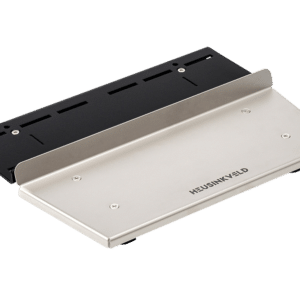

Sprint Baseplate

Looking for a solid mount for your Sprint pedals and you don't want to mount them directly on your rig? Then look at our Sprint Baseplate. Sturdy and able to handle high pedal forces.

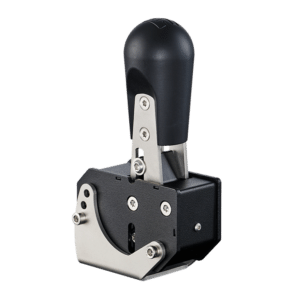

MagShift Mini

An ultra-compact, super solid and heavy-duty sequential shifter! Don’t be fooled by its compact appearance, MagShift Mini can be set to require either buttery smooth or very rigid shifting force.

Out of stock

Want to be notified when this product is back in stock?

Email address

Specifications
Product information
Heusinkveld Software
Downloads

Ultimate+ pedals

Compatability

PC (Windows 10 or newer)

Software

SmartControl & SmartControl Live

Controller

Yes, external controller box

Plug and play

Yes

Max actual braking force

140 kg

Hydraulic damping

Yes, adjustable 2-way damping on brake and clutch. Adjustable 1-way damping on throttle

Dimensions

445x310x91mm

Material

Powder coated and glass bead blasted stainless steel

Weight

4.98 kg

In the box

Pedals, controller box, USB cable, mounting materials, installation & adjustment tools, manual

Sensor type

Force-sensitive 200kg load cell (brake pedal)
Position-sensitive load cell (throttle & clutch)

Packaging

Eco-Friendly Packaging

Warranty

2 years

Certificate

EMC + CE

Type of simracer

Suitable for

Professional driver training, Esports, commercial use, home use

Type of cars

F1 (realistic brake force), GP2, F3, Indycar, LMP, GT cars, Nascar, Rally, Road cars

Adjustments & mounting

Adjustments/settings

9 brake resistance settings, pedal preload, pedal angle, pedal travel, pedal plate height, hydraulic damping, pedal output curves, deadzones

Mounting

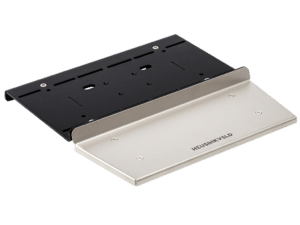

On a full frame rig (you can use our Ultimate+ Baseplate)

About the Ultimate+ pedals

Engineering

Precision and performance
Heusinkveld Ultimate+ are designed for high-end professional motorsport simulators. A strong, compact, durable and adjustable pedal set which is capable of simulating pedal loads as high as in real GT and F1 cars. The proof is in the trust of real drivers and Esport drivers using the Ultimate+ pedals for training.

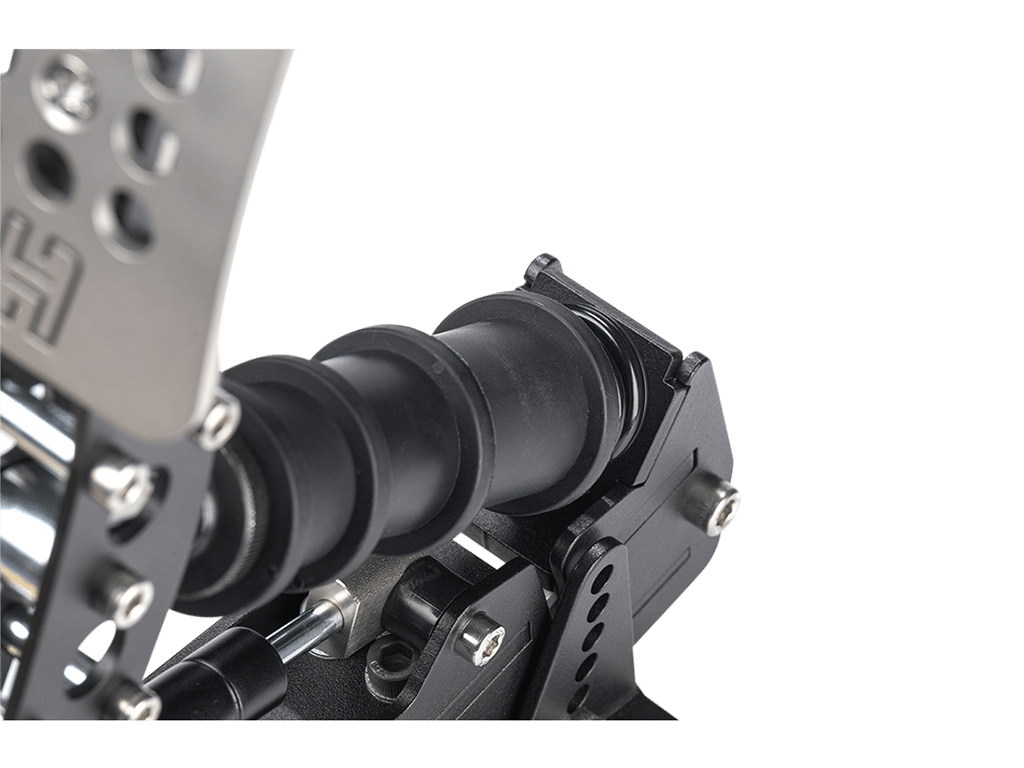

The pedals (brake, throttle and clutch) offer a strong and stiff feeling, the Heusinkveld custom made elastomers for the brake pedal providing you a realistic progressive brake feel, even after thousands of races. The hydraulic damping on every pedal is ultra-reliable and do not require periodic maintenance.



Mathematical models were made to calculate pedal travel and operation force, predicting with great accuracy how each pedal feels in every possible configuration. Design tolerances have been optimized in order to have a minimal amount of play on every assembly. All key pivot points have slide bearings and have gone through automated durability testing to guarantee their functionality after a million duty cycles.

Adjustment options

Each pedal has different adjustment options but some adjustments are for all pedals:



  • Pedal angle
  • Pedal plate height
  • Hydraulic damping



Throttle & Clutch:

  • Pedal travel
  • Overall pedal force
  • Pedal spring preload



Brake only:

  • Pedal resistance
  • Coil spring preload



Software:

  • Output curves
  • Deadzones

Components

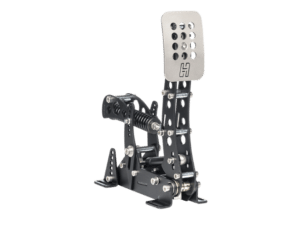

Heusinkveld Ultimate+ Black 2-pedal set contains a throttle and brake pedal

Mounting

Nog schrijven

Electronics

Heusinkeld Sim Pedals Ultimate+ use a custom made 12-bit USB controller, which works with Heusinkveld SmartControl software. The controller enclosure is made of steel and is equipped with 4 mounting holes for easy mounting to your simulator. It can also be mounted to the underside of the optional Sim Pedals Ultimate+ Baseplate.

FAQ

Please note that these pedals cannot be installed on a floor without further support, or in a wheel stand where there is no solid connection between the pedals in the seat. A full frame rig/simulator is always required for the Ultimate+, even if you use the optional Ultimate+ Baseplate.



The Sim Pedals Ultimate+ can be used in the following driving simulator environments:
– For professional driver training
– For home use (eg. eSports simulators, simracing enthusiasts)
– In commercial applications (eg. rental simulators) (deze weglaten ivm RC pedals?)



This product is supported on PC’s with Windows 10 or newer. It is not supported on Linux or consoles such as Xbox or Playstation.

Ultimate+ pedals

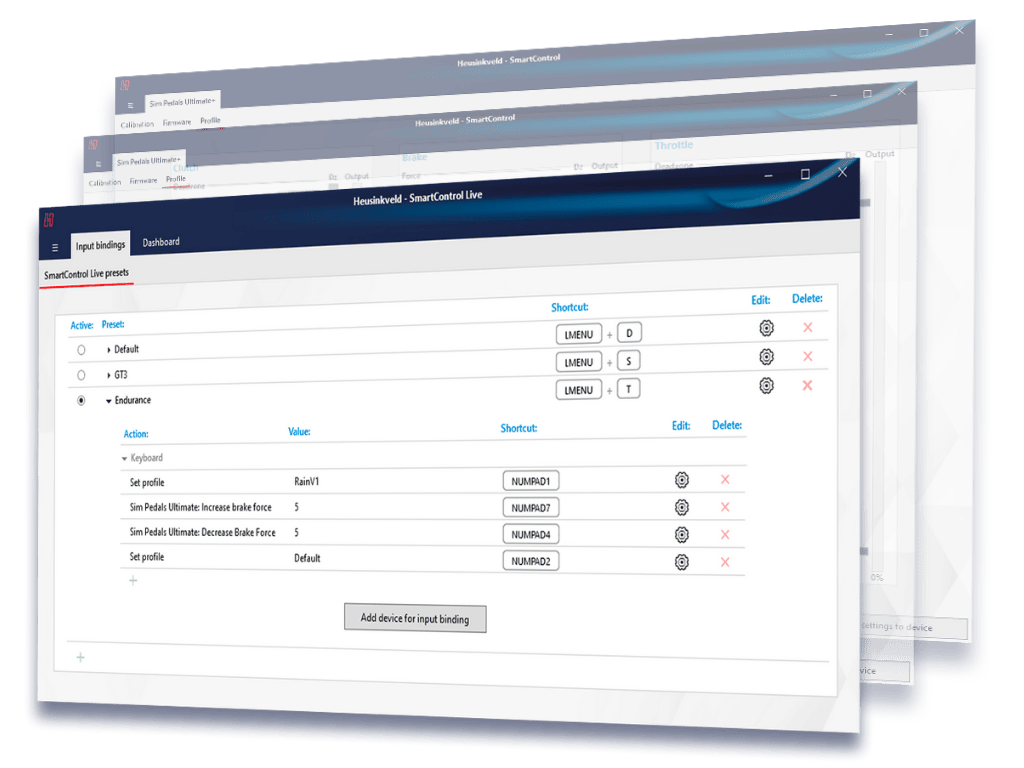

SmartControl

Nog invullen

SmartControl Live

Nog invullen

Ultimate+ pedals

All downloads

Quick start
Product Manual
Installation tutorial video

Go to downloads
