1024 grams

Appr. 270mm at position of hands

Main components made of fiber-reinforced composites

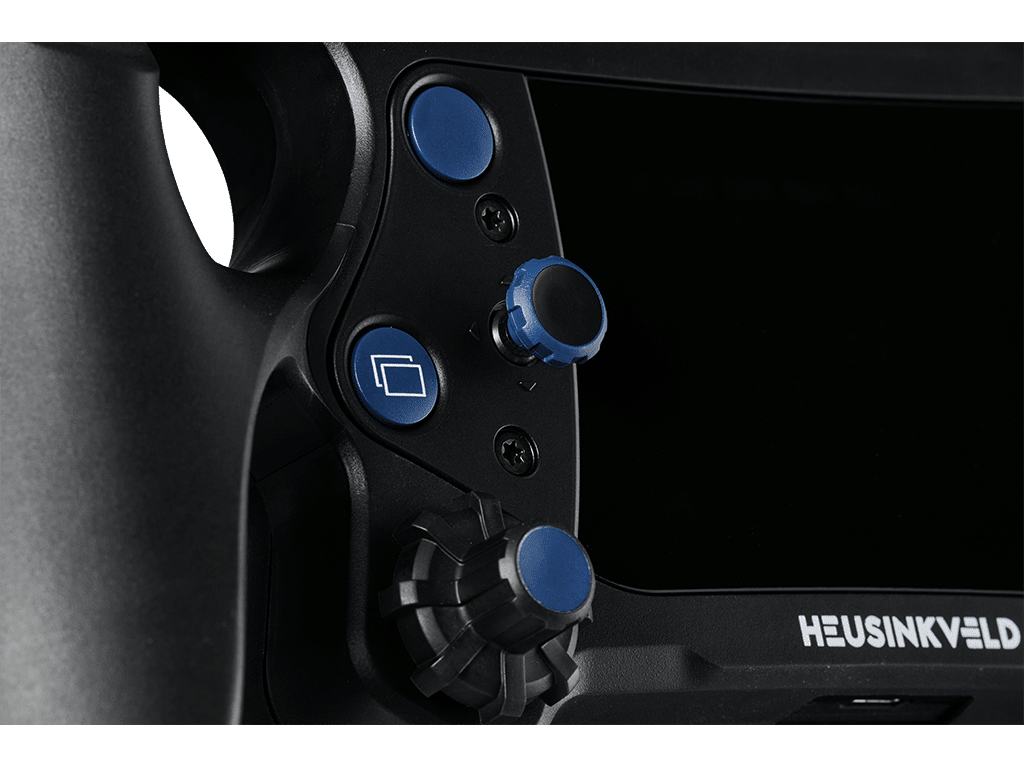

14x buttons, 4x push rotary encoders, 2x 7-way switches, 2x push-pull shifter paddles, 2x clutch paddle

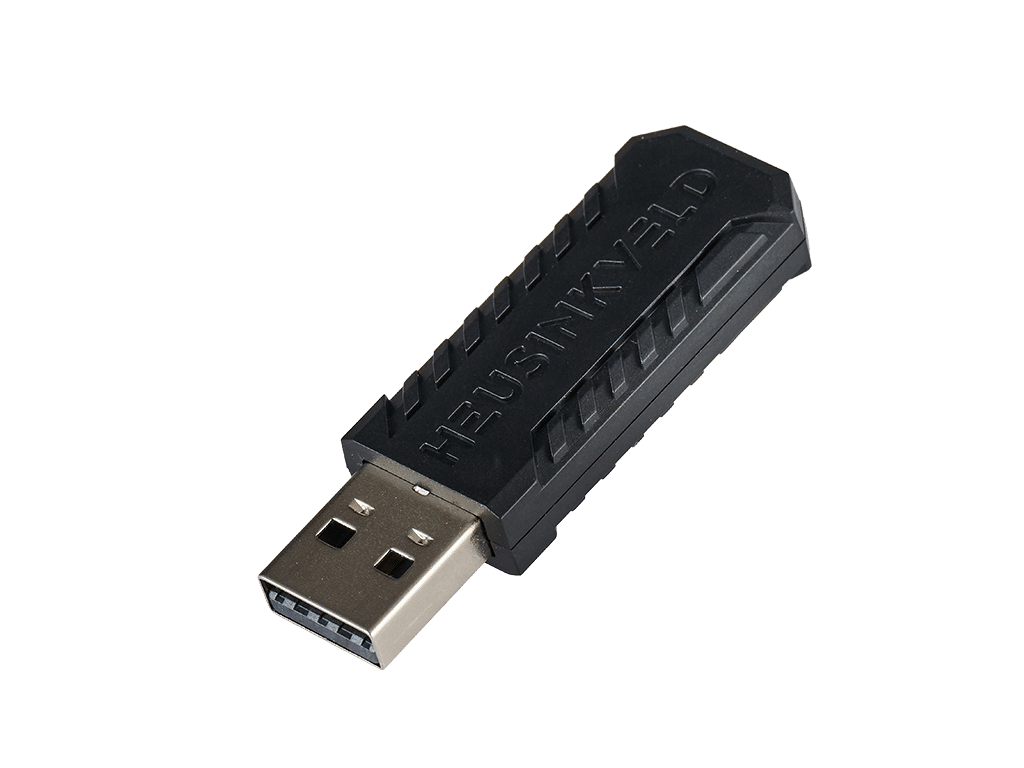

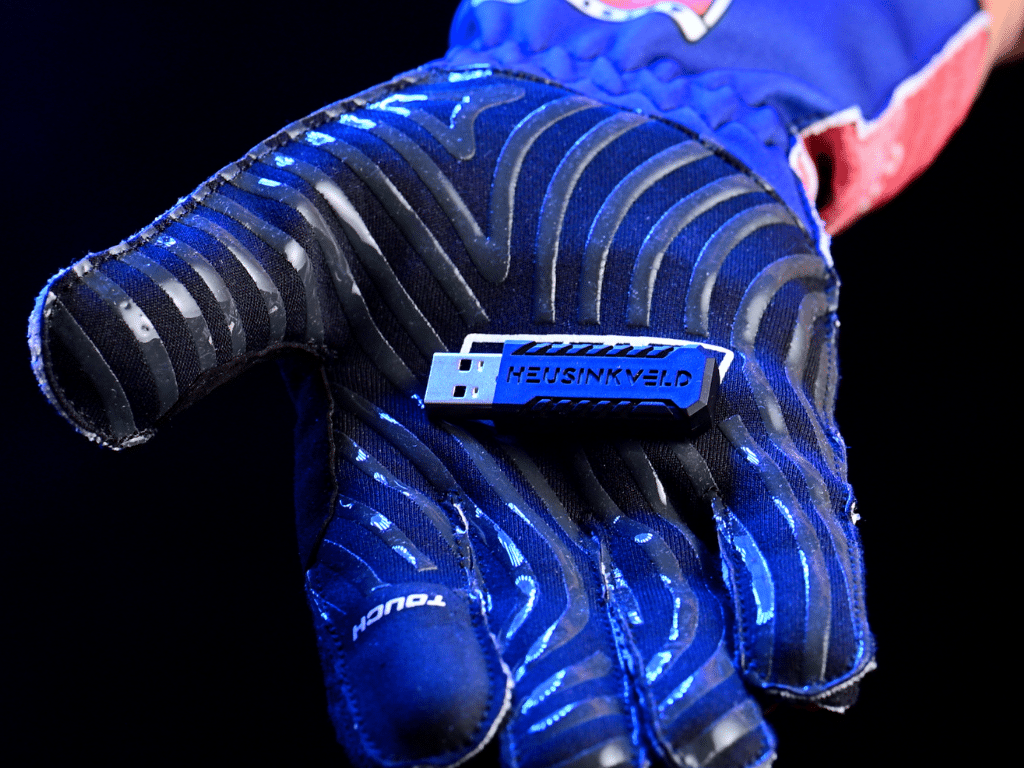

Wireless (dongle included)

Yes

Heusinkveld SmartControl (included) and SimHub (third party software for control of telemetry leds. Available in free and licensed version)

9x located in the center panel

Integrated 50,8mm threaded hub. Optional adapter to 70mm hub available.

280x163x95mm (WxHxD)

2800mAh

2 years

EMC + CE, FCC

Professional driver training, Esports, commercial use, home use

Formula cars, GT cars, Endurance prototypes.

Push & pull functionality, paddle length adjustment. Configurable combined or separate outputs per paddle and for push/pull.

14 buttons position, 24 button covers supplied. Interchangeable.

Freely configurable controller button output numbers and keyboard outputs. Combined or separate outputs.

Up to 4 different outputs per physical input with the function layer and short/long press functionality.

Configurable axis. Combined or seperate outputs. Output curve adjustments. Bite-point settings per clutch paddle.

Configurable via SimHub

Adjustable brightness or disabled

Adjustable brightness

Designed for simracing

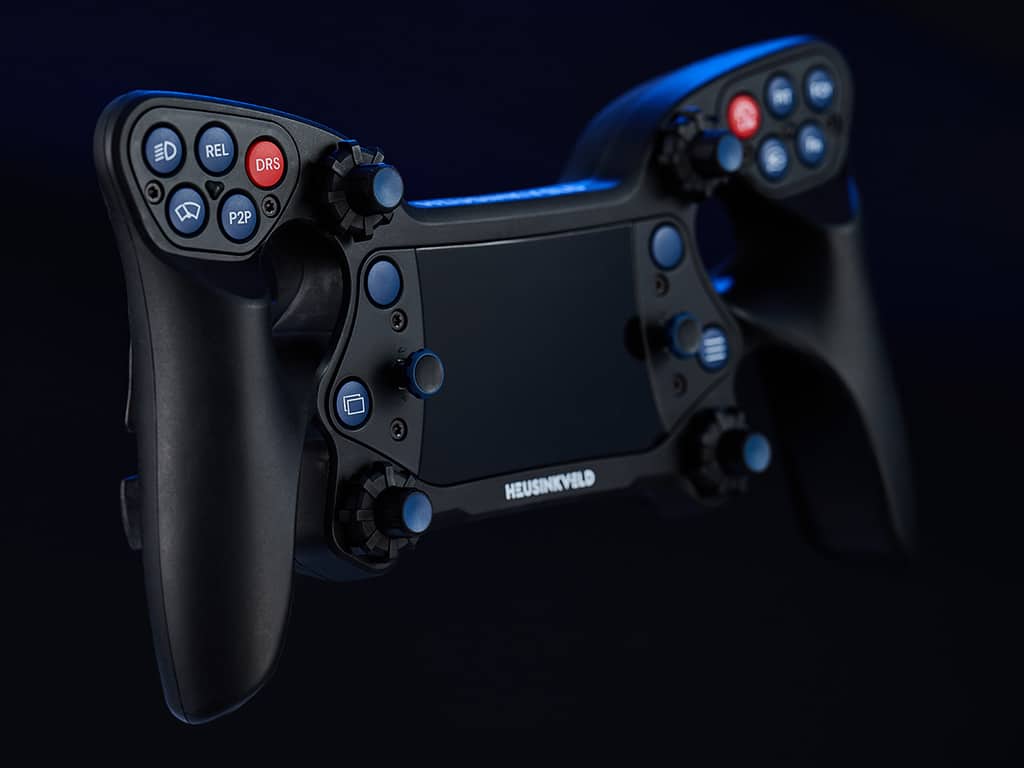

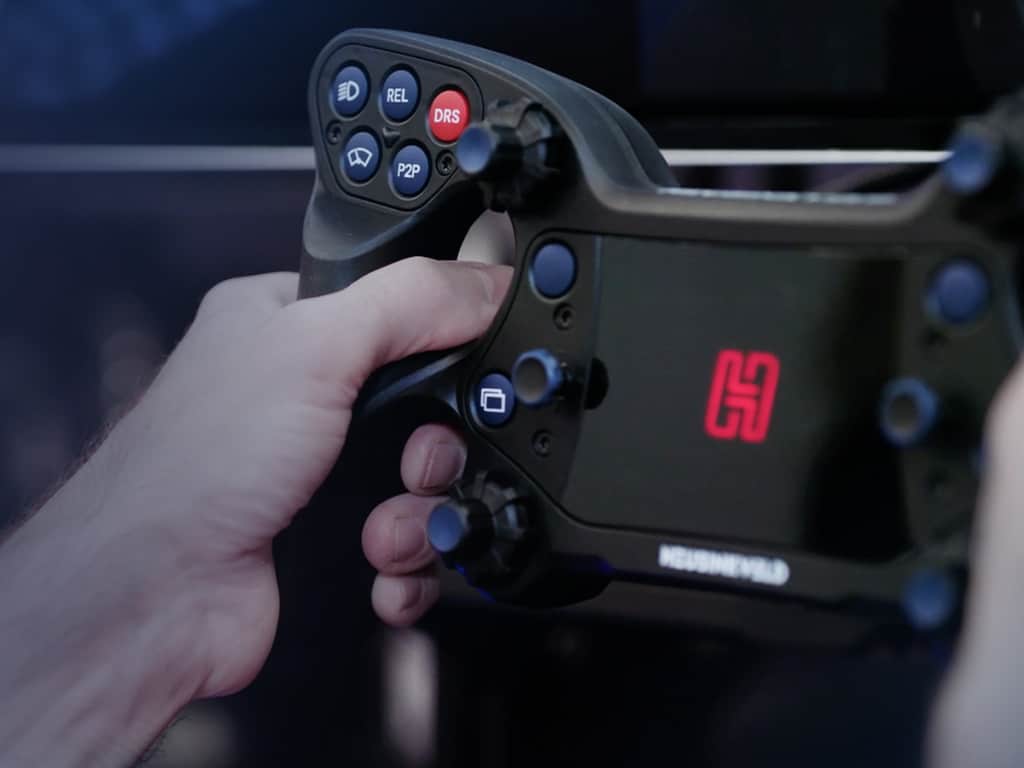

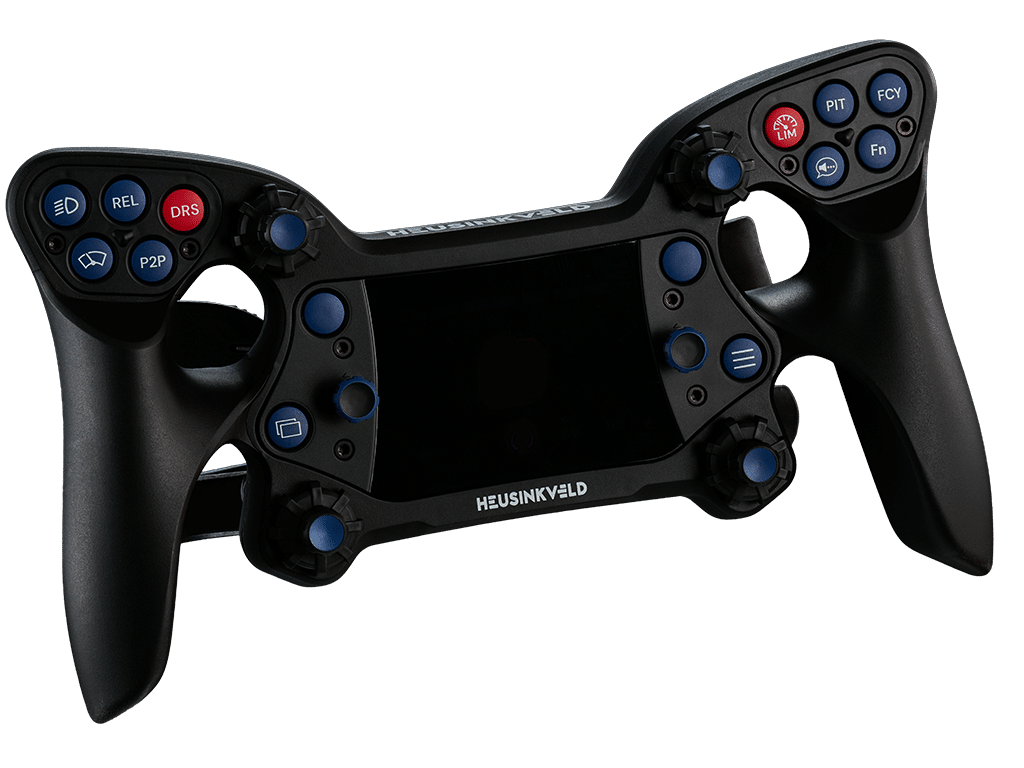

Truly different ergonomics & optimal access to inputs give you maximum control while racing. Low-latency wireless connectivity and packed with features such as 2-way shifter paddles, dual clutch paddles and RGB telemetry leds.

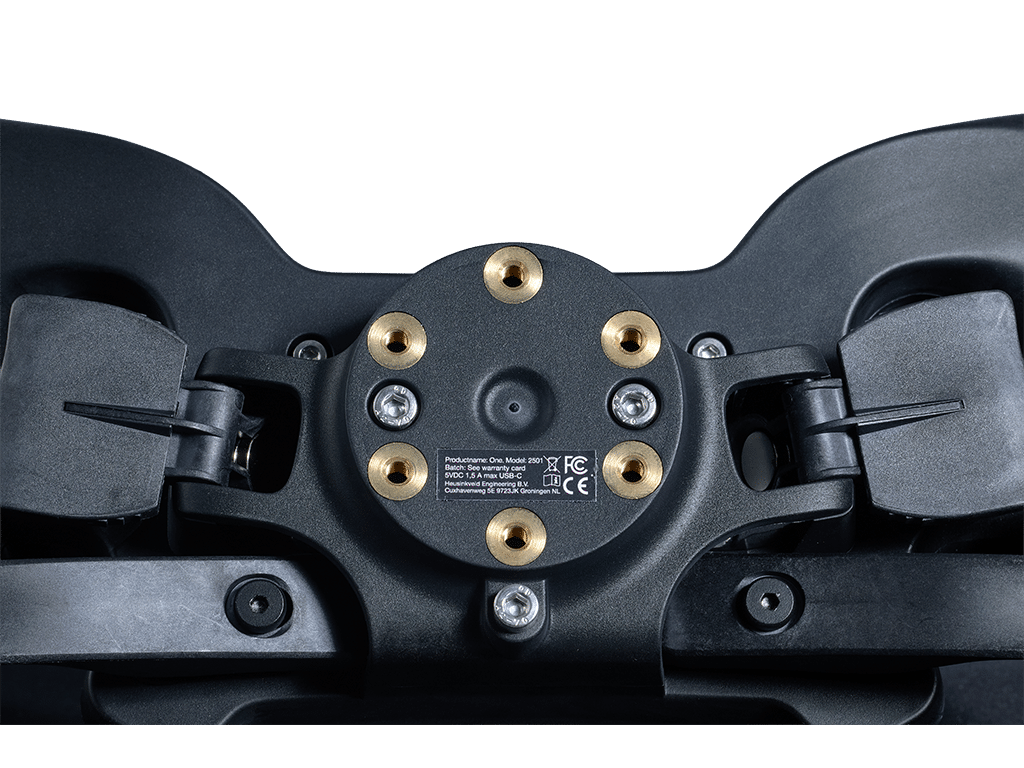

At the rear of Heusinkveld One is an integrated 50,8mm threaded hub. This means that there are various wheelbase quick releases which can be mounted directly to the Heusinkveld One steering wheel.

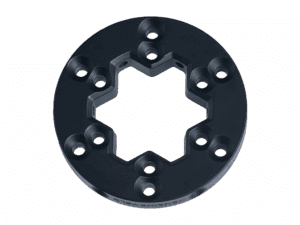

If your quick release has different mounting pattern, make sure to check out the optional Heusinkveld mounting adapter. It converts the 50,8mm hub pattern to a 70mm pattern and has a depth of only 15mm.

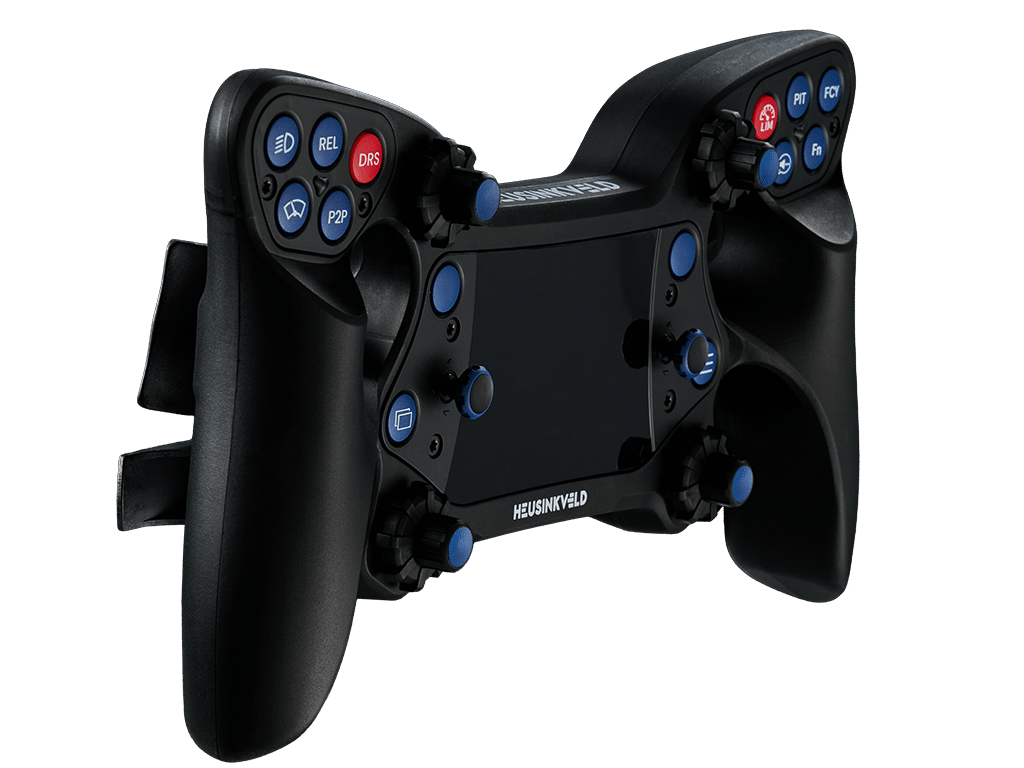

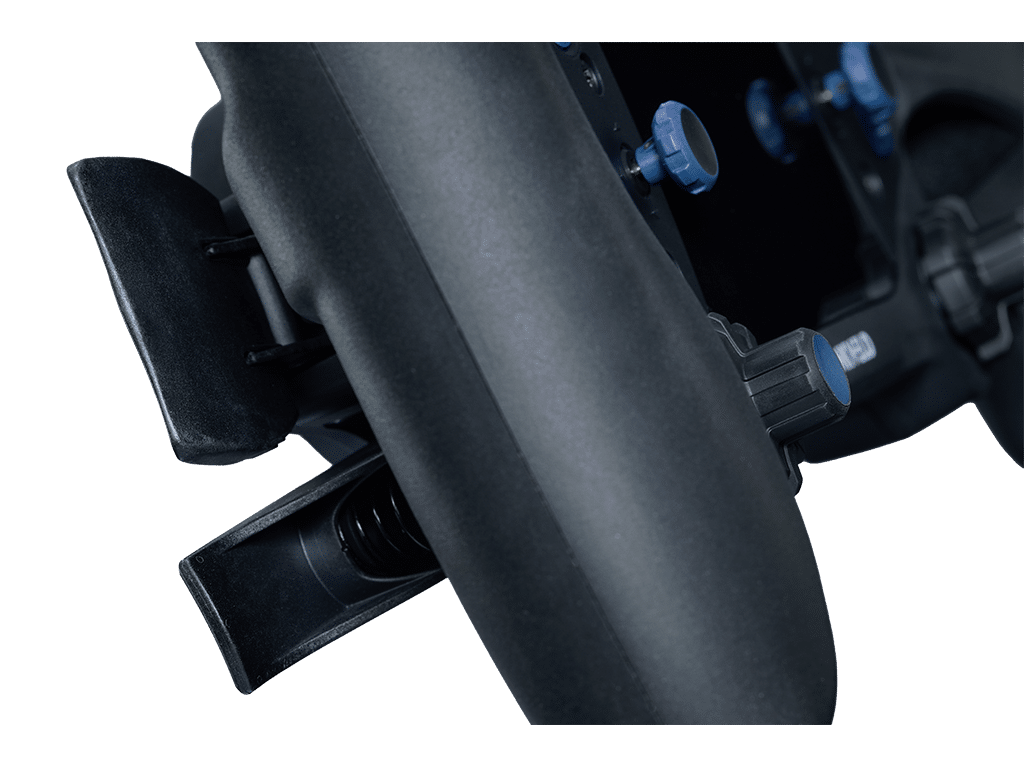

Heusinkveld One features 2-way shifter paddles with adjustable length.

The wheel has dual clutch paddles with configurable axis. Combined or seperate outputs. Output curve adjustments. You can se bite-point settings per clutch paddle.

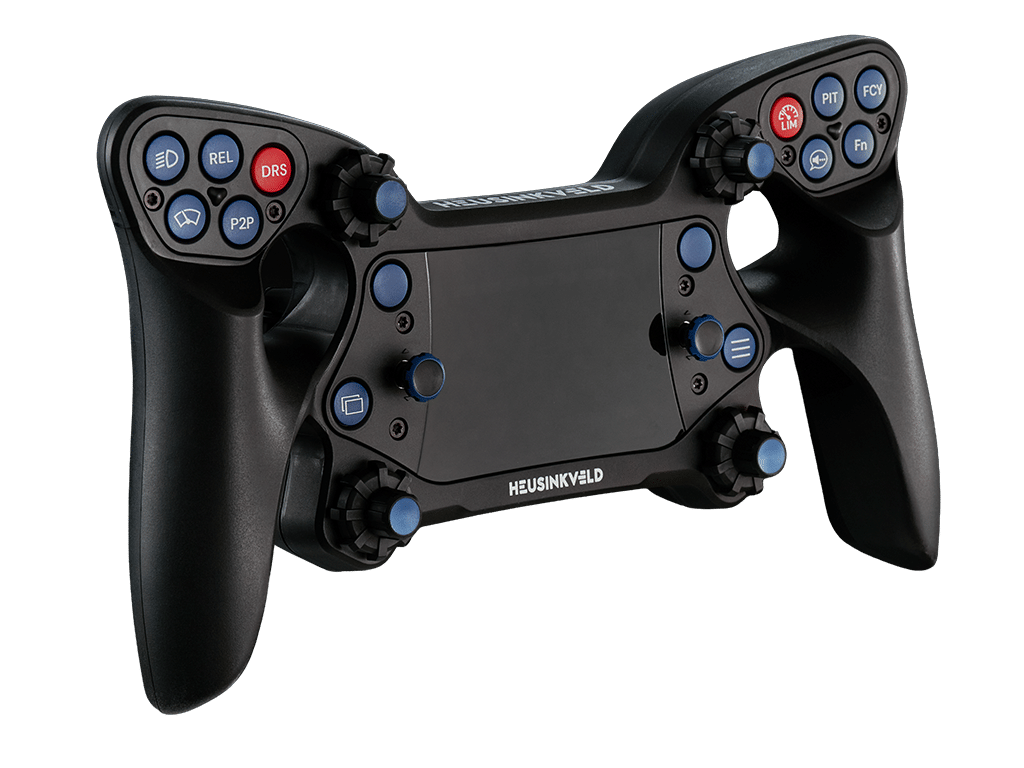

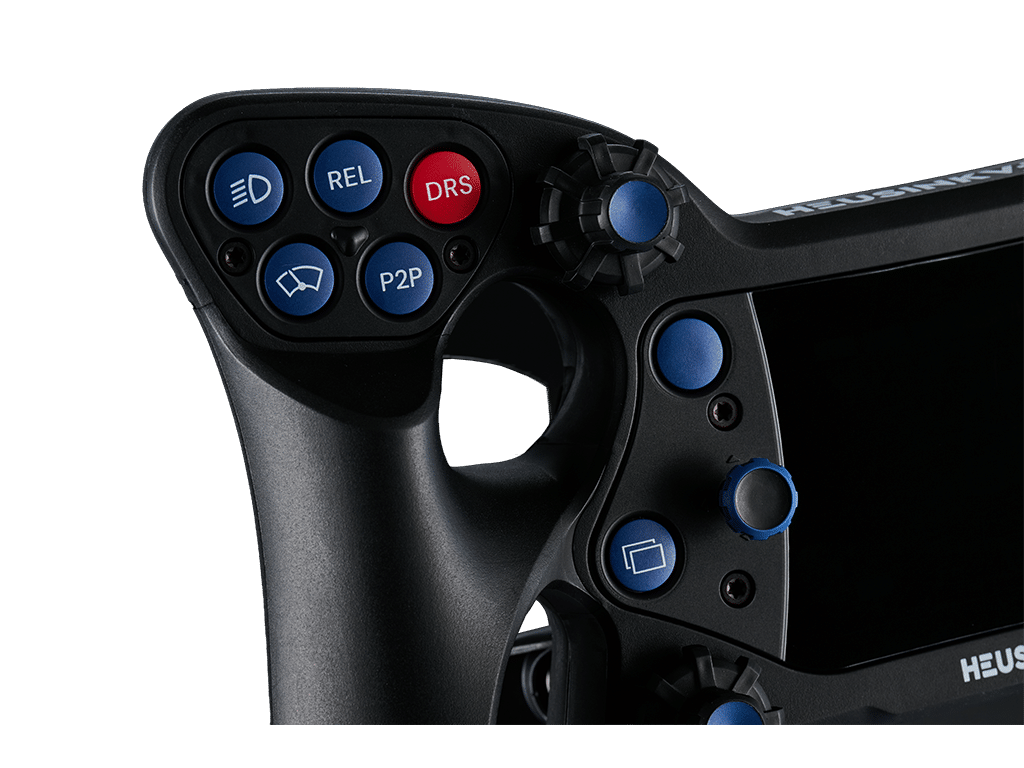

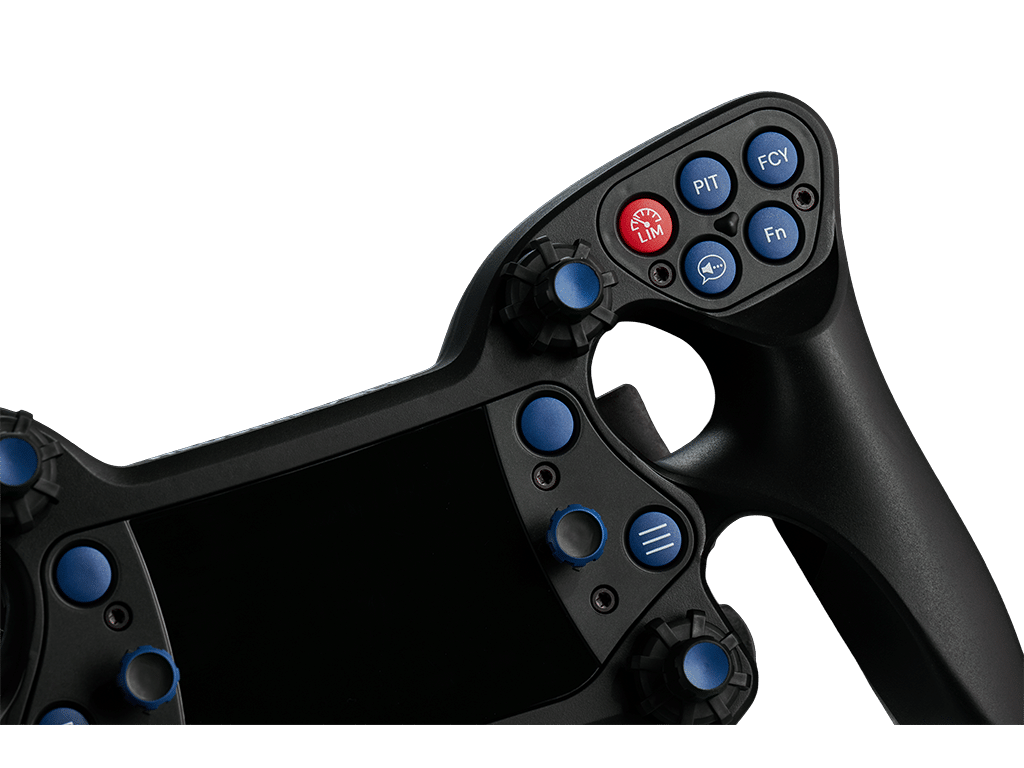

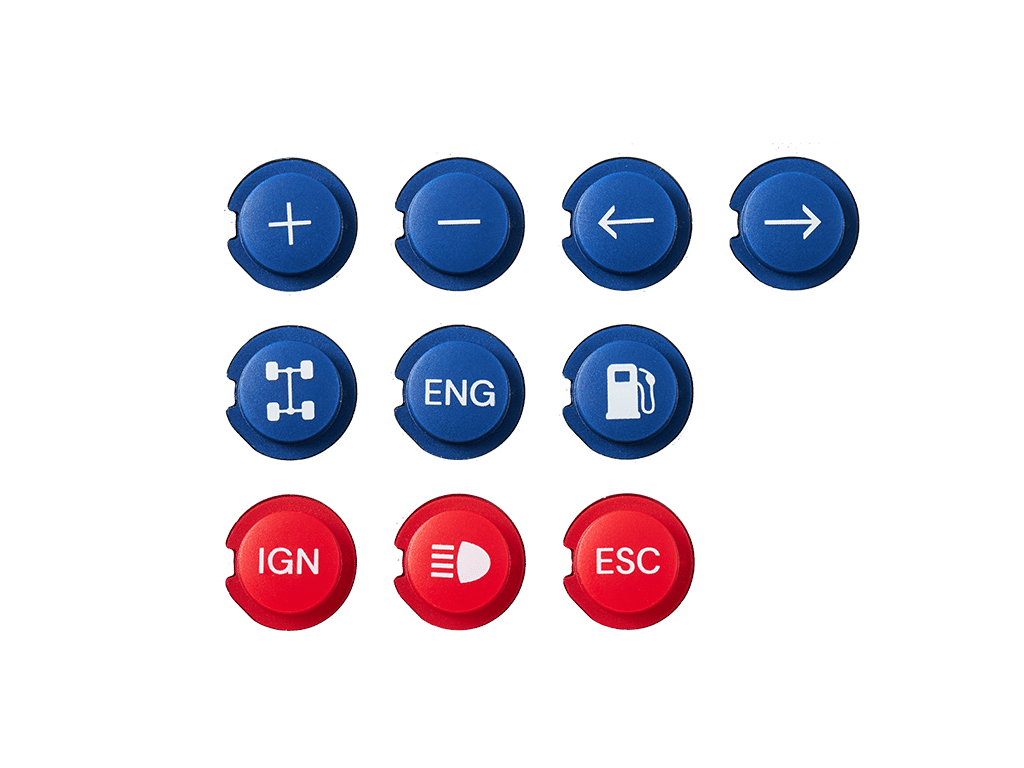

The steering wheel has 14 push buttons. A total of 24 buttons are supplied with the wheel (14 installed, 10 extra). The position of each button can be changed.

Freely configurable controller button output numbers and keyboard outputs. Combined or separate outputs.

Using the function layer and long-short press functionality, up to 4 different outputs can be defined for every single physical input.

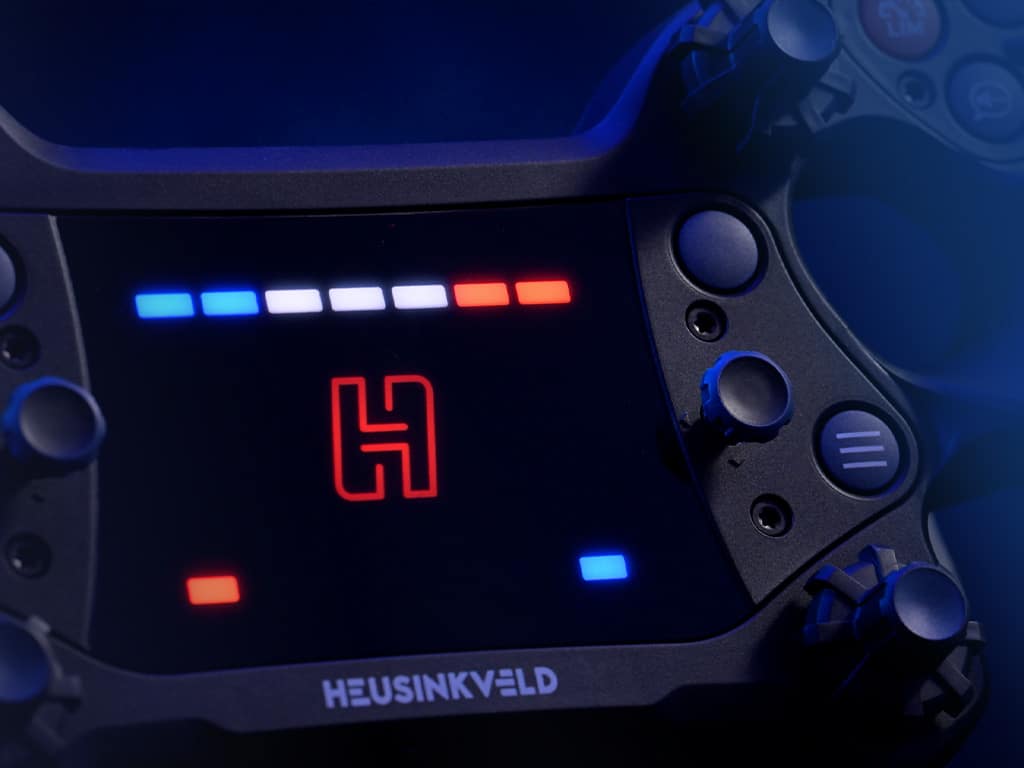

The 9 RGB telemetry leds are freely configurable using SimHub software.

The brightness of all leds is freely configurable. The H-icon can be dimmed or disabled.

Which wheelbases are compatible?
The Heusinkveld One steering wheel can be mounted directly on your wheelbase using its 50.8mm threaded hub, compatible with most quick release systems or adapters.

To use a 70mm quick release setup, the optional Heusinkveld Steering Wheel Adapter (HE-SW-ADAPT) is recommended.

The product does not work (correctly) with consoles such as Xbox or PlayStation.

What adjustments can be made on the wheel?
The Heusinkveld One steering wheel allows owners to customize the layout of its 14 pushbuttons. A few extra buttons have been supplied with the wheel.

You can also change the length of the shifter paddles.

Please refer to the manual for instructions on how to do this easily.

Download here

Third party software for control of telemetry leds: simhubdash.com

Product manual
SmartControl software
Simhub software (for telemetry leds)
