PC (Windows 10 or newer)

SmartControl & SmartControl Live

Yes, external controller box

Yes

140 kg

Yes, adjustable 2-way damping on brake and clutch. Adjustable 1-way damping on throttle

445x310x91mm

Powder coated and glass bead blasted stainless steel

6.64 kg

Pedals, controller box, USB cable, mounting materials, installation & adjustment tools, manual

Force-sensitive 200kg load cell (brake pedal)
Position-sensitive load cell (throttle & clutch)

Eco-Friendly Packaging

2 years

EMC + CE

Professional driver training, Esports, commercial use, home use

F1 (realistic brake force), GP2, F3, Indycar, LMP, GT cars, Nascar, Rally, Road cars

9 brake resistance settings, pedal preload, pedal angle, pedal travel, pedal plate height, hydraulic damping, pedal output curves, deadzones

On a full frame rig (you can use our Ultimate+ Baseplate)

Precision and performance
Heusinkveld Ultimate+ are designed for high-end professional motorsport simulators. A strong, compact, durable and adjustable pedal set which is capable of simulating pedal loads as high as in real GT and F1 cars. The proof is in the trust of real drivers and top Esport drivers using the Ultimate+ pedals for training.


The pedals (brake, throttle and clutch) offer a strong and stiff feeling. The Heusinkveld custom made elastomers for the brake pedal provide you a realistic progressive brake feel, even after thousands of races. The hydraulic damping on every pedal is ultra-reliable and do not require periodic maintenance.


Mathematical models were made to calculate pedal travel and operation force, predicting with great accuracy how each pedal feels in every possible configuration. Design tolerances have been optimized in order to have a minimal amount of play on every assembly. All key pivot points have slide bearings and have gone through automated durability testing to guarantee their functionality after a million duty cycles.

Each pedal has different adjustment options but some adjustments are for all pedals:

• Pedal angle

• Pedal plate height

• Hydraulic damping

Throttle & Clutch:

• Pedal travel

• Overall pedal force

• Pedal spring preload

Brake only:

• Pedal resistance

• Coil spring preload

Clutch only:

• Pedal force curve

Software:

• Output curves

• Deadzones

Heusinkveld Ultimate+ Black 3-pedal set contains a clutch, throttle and brake pedal

Each pedal is equipped with four mounting slots, allowing forwards and backwards adjustments to be made for optimal ergonomics. Because the Ultimate+ pedals can handle high operating forces (up to 140kg at the brake pedal footplate), you must install the pedals on a very rigid base.

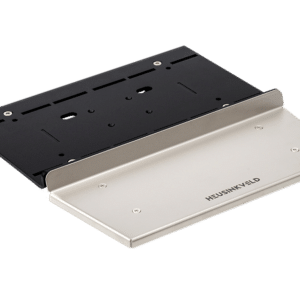

Possible mounting solutions are aluminium profile beams, a thick metal (drilled) plate or our Ultimate+ Baseplate.

Bolts of variout length, washers and flanged nuts are included with the pedals.

Heusinkeld Sim Pedals Ultimate+ use a custom made 12-bit USB controller, which works with Heusinkveld SmartControl software. The controller has a metal enclosure and is equipped with 4 mounting holes for easy mounting to your simulator. It can also be mounted to the underside of the optional Sim Pedals Ultimate+ Baseplate.

Please note that these pedals cannot be installed on a floor without further support, or in a wheel stand where there is no solid connection between the pedals in the seat. A full frame rig/simulator is always required for the Ultimate+, even if you use the optional Ultimate+ Baseplate.

The Sim Pedals Ultimate+ can be used in the following driving simulator environments:
• For professional driver training
• For home use (eg. Esports simulators, simracing enthusiasts)
• In commercial applications.

This product is supported on PC’s with Windows 10 or newer. It is not supported on Linux or consoles such as Xbox or Playstation.

Our Heusinkveld Sprint pedals come with a powerful configuration tool allowing you to set up your pedals in ways not previously possible: SmartControl. Working together with our own electronics platform, SmartControl allows for instant mapping of (non-linear) pedal output curves, pedal deadzones and brake pedal force.

These adjustments can be made without having to recalibrate the pedals (including iRacing). All settings can be saved into profiles, which can be loaded again in a few mouse clicks.

Heusinkveld SmartControl Live is an innovative software tool to adjust your controller settings to your own preferences while driving. Activate SmartControl profiles for different cars and classes at the touch of a button, without having to leave the simulator software.
