If you own the classic Sim Pedals Ultimate which has RJ-plugs to connect the pedals to the controller (sold between mid-2014 to 2021), you can use this upgrade kit.

If you own the classic Sim Pedals Ultimate which has wire terminals on the controller (sold between late 2013 – early 2014), you must crimp RJ9 plugs (crimp tool and plugs not included in the Upgrade Kit) to the pedal wires before you can use the SmartControl controller. Contact support@heusinkveld.com for further guidance.

SmartControl & SmartControl Live

Yes

Yes

1 kg

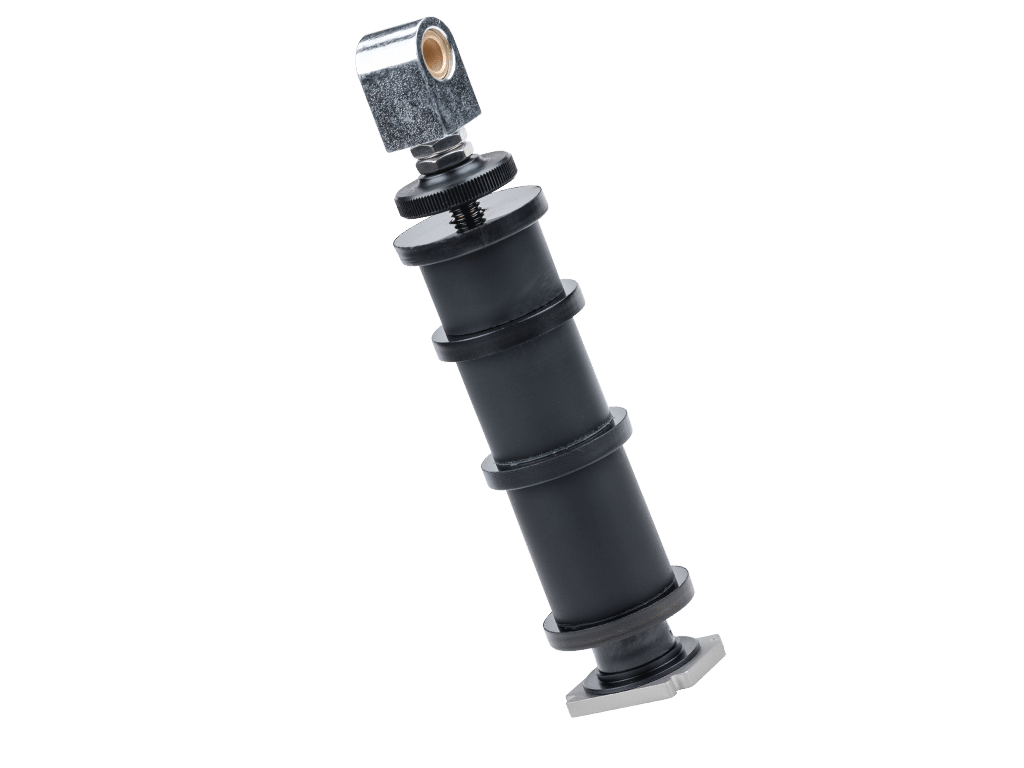

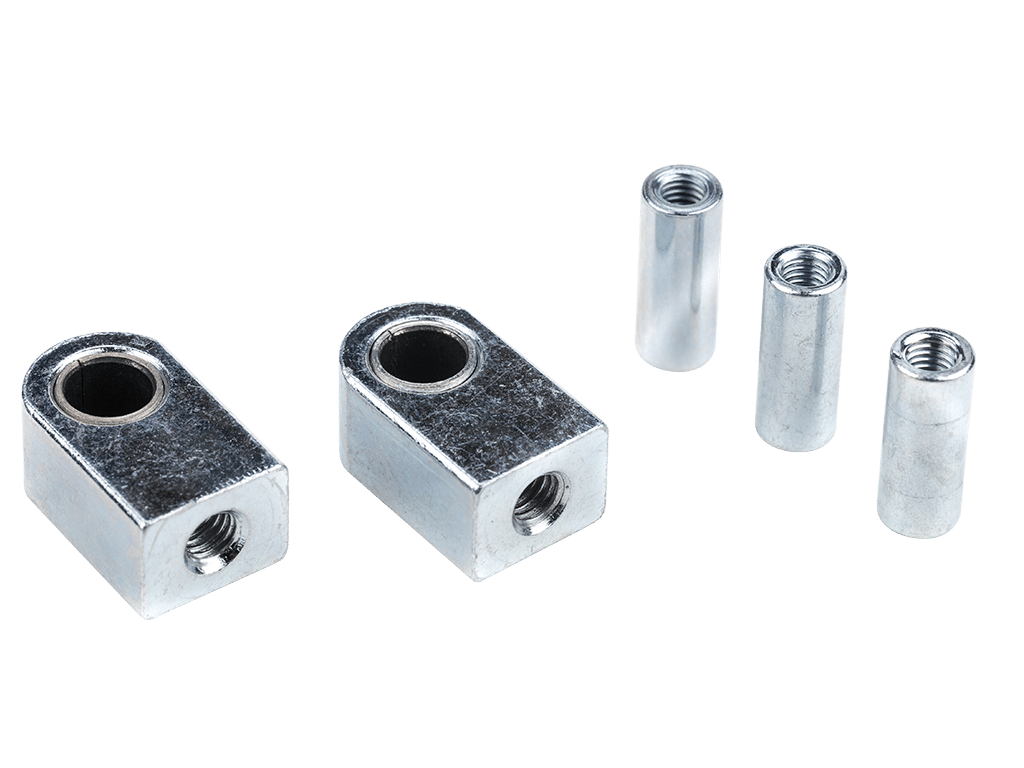

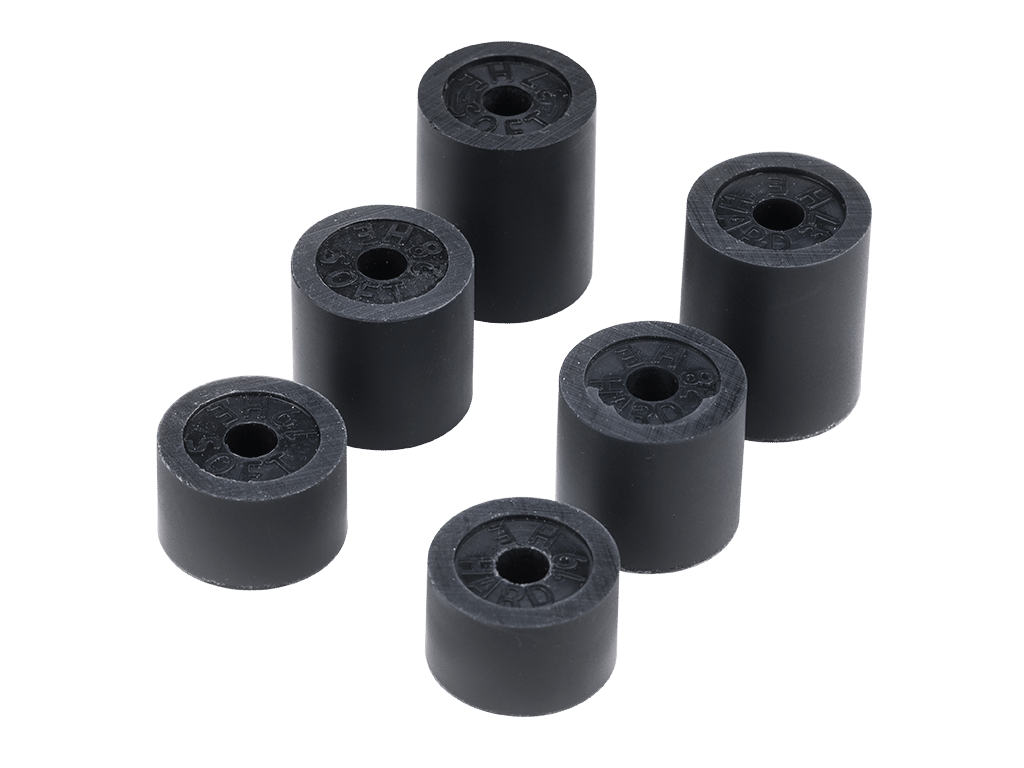

Controller box, 6 elastomers, discs, new rod, back plate, back plate bearing, knurled knob for preload adjustment, 3 soft blue end-stops, 2 hex keys and a wrench

N/A

Eco-Friendly Packaging

2 years

EMC, CE

Simracers who own the Classic Ultimate pedals

F1, GP2, F3, Indycar, LMP, GT cars, Nascar, Rally, Road cars

Calibrate and configure brake pedal force, pedal deadzones, custom output curves and store profiles through SmartControl software.

Directly on Classic Ultimate pedals

If you own a set of Classic Ultimate pedals, you have the option to upgrade these pedals with the most important technical enhancements of the latest Ultimate+ pedals.

This Upgrade Kit will improve your Classic Ultimate pedals with regard to durability, electronics, SmartControl & SmartControl Live software and all new brake spring system components.

With this kit you can use our SmartControl software to calibrate and configure your pedals. SmartControl allows you to configure brake pedal force, pedal deadzones, custom output curves and store profiles.

In addition to this, you can also use SmartControl Live in order to change pedal profiles while driving.

Within the Classic Ultimate Upgrade Kit, the new controller box and part of the rubber stack assembly are pre-assembled. You must still install/integrate these assemblies into your current Ultimate pedal set.

All other components come as individual parts. You have to do the installation of the new parts into the existing pedals yourself. This will take approximately 30 minutes. Tools to perform the installation are included in the Classic Ultimate Upgrade Kit.

We provide printed schematics / exploded views with the Classic Ultimate Upgrade Kit. These schematics and an installation video (linken) giving further guidance on the installation can also be found in our Support page (linken).

For further information on brake pedal rubber stack settings, electronics and software you can use the manual for the Ultimate+ instead of the classic Sim Pedals Ultimate manual.

If you own the Ultimate+ (sold from July 2021 onwards), do not buy this Upgrade Kit. Your pedals already have all parts included in this Upgrade Kit.

The Upgrade Kit is not compatible with other pedal series such as Sim Pedals Pro, Sim Pedals Sprint or Sim Pedals Racecenter.
