PC (Windows 10 or newer)

SmartControl & SmartControl Live

Yes, external controller box

Yes

140 kg

Yes, adjustable 2-way damping on brake and clutch. Adjustable 1-way damping on throttle

445x310x91mm

Powder coated and glass bead blasted stainless steel

1.99 kg

Pedals, controller box, USB cable, mounting materials, installation & adjustment tools, manual

Force-sensitive 200kg load cell (brake pedal)
Position-sensitive load cell (throttle & clutch)

Eco-Friendly Packaging

2 years

EMC + CE

Professional driver training, Esports, commercial use, home use

F1 (realistic brake force), GP2, F3, Indycar, LMP, GT cars, Nascar, Rally, Road cars

9 brake resistance settings, pedal preload, pedal angle, pedal travel, pedal plate height, hydraulic damping, pedal output curves, deadzones

On a full frame rig (you can use our Ultimate+ Baseplate)

Precision and performance
Heusinkveld Ultimate+ are designed for high-end professional motorsport simulators. A strong, compact, durable and adjustable pedal set which is capable of simulating pedal loads as high as in real GT and F1 cars. The proof is in the trust of real drivers and Esport drivers using the Ultimate+ pedals for training.


The pedals (brake, throttle and clutch) offer a strong and stiff feeling, the Heusinkveld custom made elastomers for the brake pedal providing you a realistic progressive brake feel, even after thousands of races. The hydraulic damping on every pedal is ultra-reliable and do not require periodic maintenance.


Mathematical models were made to calculate pedal travel and operation force, predicting with great accuracy how each pedal feels in every possible configuration. Design tolerances have been optimized in order to have a minimal amount of play on every assembly. All key pivot points have slide bearings and have gone through automated durability testing to guarantee their functionality after a million duty cycles.

Each pedal has different adjustment options but some adjustments are for all pedals:

• Pedal angle

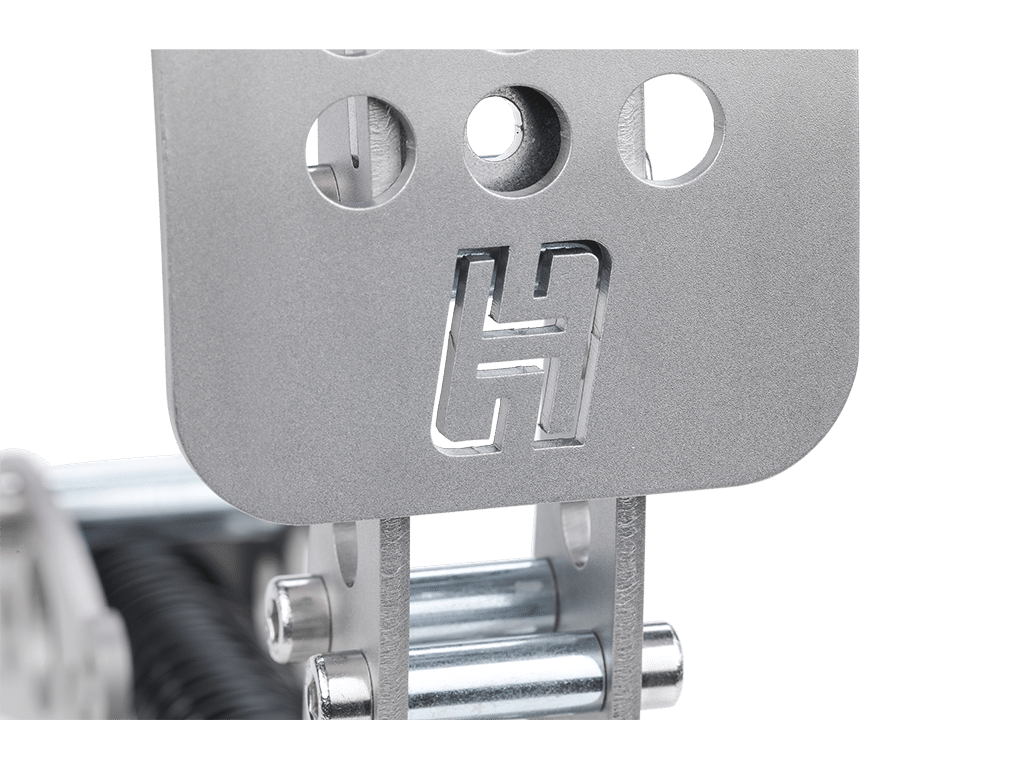

• Pedal plate height
• Hydraulic damping

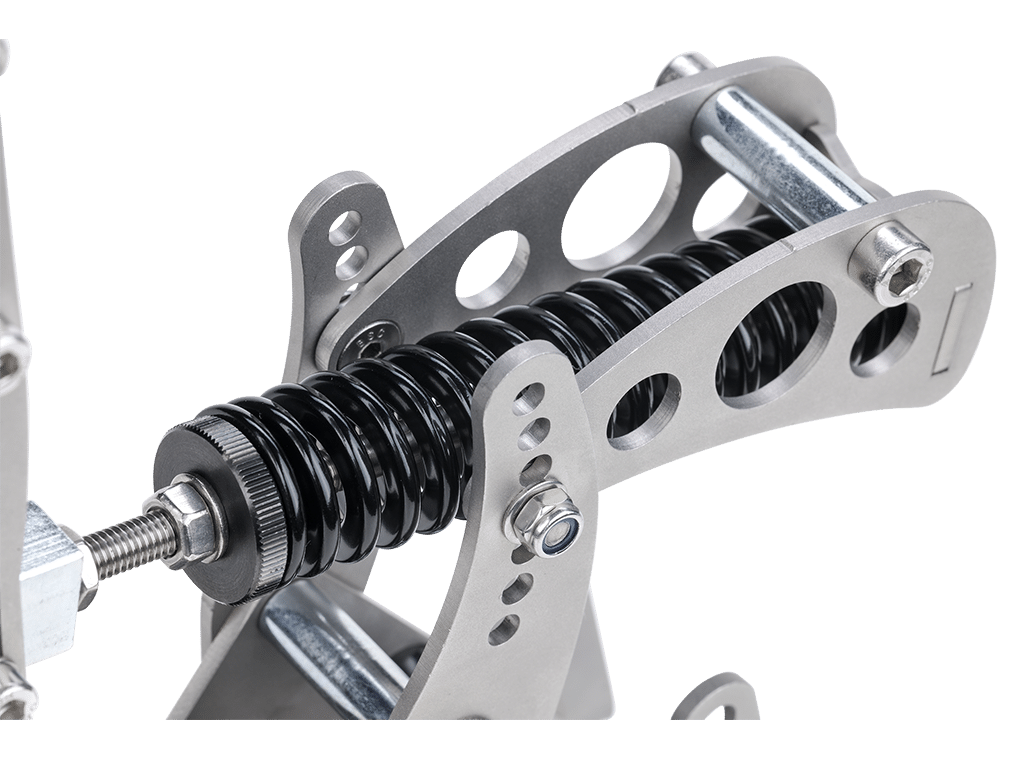

Throttle & Clutch:

• Pedal travel
• Overall pedal force
• Pedal spring preload

Clutch only:

• Pedal force
• Pedal force curve

Software:

• Output curves
• Deadzones

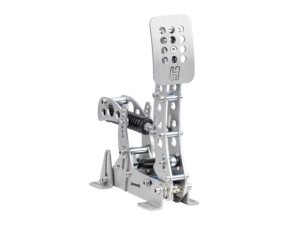

Heusinkveld Ultimate+ Black 1 pedal-set contains a clutch (upgrade)

Nog schrijven

Heusinkeld Sim Pedals Ultimate+ use a custom made 12-bit USB controller, which works with Heusinkveld SmartControl software. The controller enclosure is made of steel and is equipped with 4 mounting holes for easy mounting to your simulator. It can also be mounted to the underside of the optional Sim Pedals Ultimate+ Baseplate.

Please note that these pedals cannot be installed on a floor without further support, or in a wheel stand where there is no solid connection between the pedals in the seat. A full frame rig/simulator is always required for the Ultimate+, even if you use the optional Ultimate+ Baseplate.

The Sim Pedals Ultimate+ can be used in the following driving simulator environments:
– For professional driver training
– For home use (eg. eSports simulators, simracing enthusiasts)
– In commercial applications (eg. rental simulators) (deze weglaten ivm RC pedals?)

This product is supported on PC’s with Windows 10 or newer. It is not supported on Linux or consoles such as Xbox or Playstation.

Nog invullen

Nog invullen
