PC (Windows 10 or newer)

Not included

Not included

Yes

Yes, adjustable 2-way damping on clutch. Adjustable 1-way damping on throttle

445x310x91mm

Powder coated and glass bead blasted stainless steel

3.0 kg

Pedals, mounting materials, & manual

Position-sensitive load cell

Eco-Friendly Packaging

2 years

EMC + CE

Professional driver training, Esports, commercial use, home use

F1 (realistic brake force), GP2, F3, Indycar, LMP, GT cars, Nascar, Rally, Road cars

Pedal preload, pedal angle, pedal travel, pedal plate height, hydraulic damping

If you want to use our pedals together with Simucube’s Active pedal, you need Simucube’s baseplate, the Active pedal does not fit on our baseplate

Precision and performance
Heusinkveld Ultimate+ are designed for high-end professional motorsport simulators. A strong, compact, durable and adjustable pedal set which is capable of simulating pedal loads as high as in real GT and F1 cars. The proof is in the trust of real drivers and Esport drivers using the Ultimate+ pedals for training.

The pedals (throttle and clutch) offer a strong and stiff feeling. The hydraulic damping on every pedal is ultra-reliable and do not require periodic maintenance.


Mathematical models were made to calculate pedal travel and operation force, predicting with great accuracy how each pedal feels in every possible configuration. Design tolerances have been optimized in order to have a minimal amount of play on every assembly. All key pivot points have slide bearings and have gone through automated durability testing to guarantee their functionality after a million duty cycles.

Each pedal has different adjustment options but some adjustments are for all pedals:

• Pedal angle
• Pedal plate height
• Hydraulic damping

Throttle & Clutch:

• Pedal travel
• Overall pedal force
• Pedal spring preload

Clutch only:

• Pedal force
• Pedal force curve

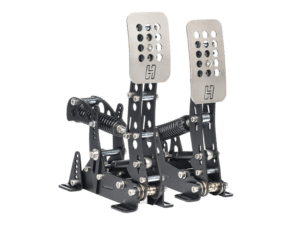

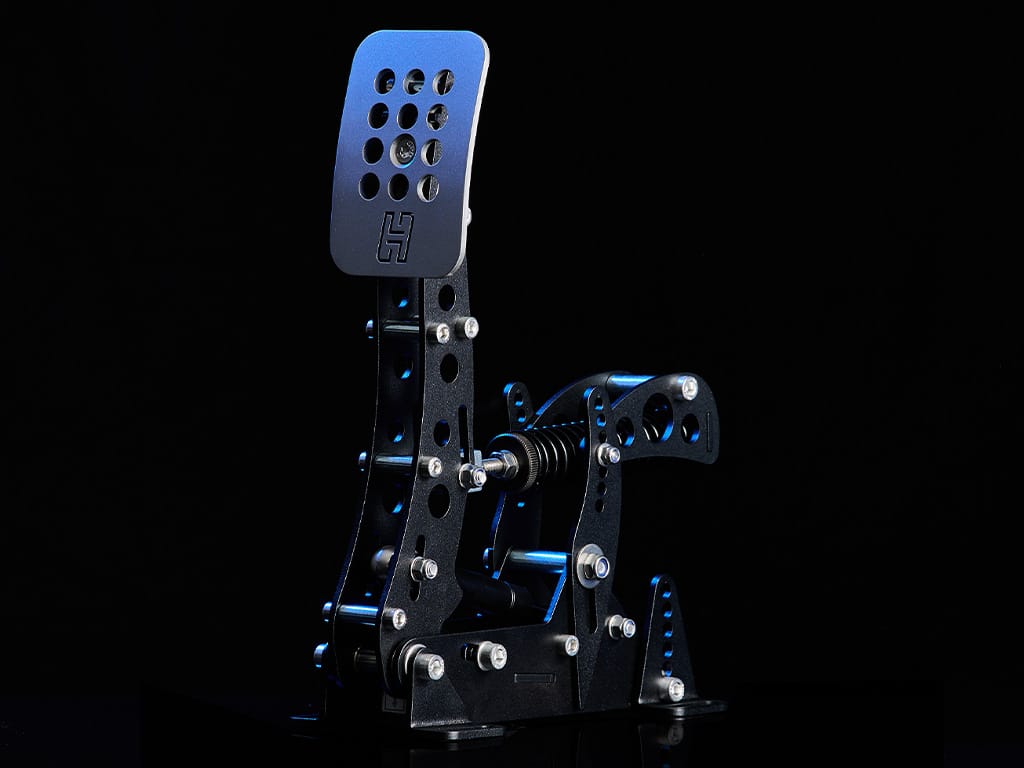

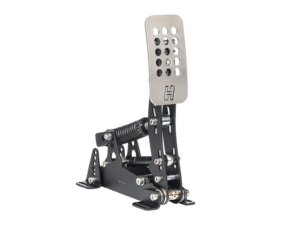

Heusinkveld Ultimate+ Black Throttle and Clutch contain a throttle and clutch

If you want to use our pedals together with Simucube’s ActivePedal, you need Simucube’s baseplate, the ActivePedal does not fit on our baseplate.

Note: you can not use Heusinkveld SmartControl and SmartControl Live, this product does not include a controller. Please refer to Simucube documentation on how to calibrate Heusinkveld pedals in combination with Simucube ActivePedal.

Please note that these pedals cannot be installed on a floor without further support, or in a wheel stand where there is no solid connection between the pedals in the seat. A full frame rig/simulator is always required for the Ultimate+.

This product is supported on PC’s with Windows 10 or newer. It is not supported on Linux or consoles such as Xbox or Playstation.

You can not use Heusinkveld SmartControl and SmartControl Live, this product does not include a controller. Please refer to Simucube documentation on how to calibrate Heusinkveld pedals in combination with Simucube ActivePedal.

You can not use Heusinkveld SmartControl and SmartControl Live, this product does not include a controller. Please refer to Simucube documentation on how to calibrate Heusinkveld pedals in combination with Simucube ActivePedal.
